Mermaid Diagrams

Doctave supports Mermaid for rendering diagrams and charts in your documentation. Rendered diagrams will match your chosen color scheme, both in light and dark mode. Mermaid JS supports a long list of diagram types, such as:

  • Flowcharts
  • Sequence Diagrams
  • Entity Relationship Diagrams
  • Gant Charts
  • Pie Charts

You can find a full list from Mermaid's official documentation.

Syntax

To render a Mermaid JS diagram, use a regular Markdown code block, and set the language of the block to mermaid:

Mermaid diagram syntax
```mermaid
sequenceDiagram
    Alice->>John: Hello John, how are you?
    John-->>Alice: Great!
    Alice-)John: See you later!
```

Example

The above example will get rendered as follows:

sequenceDiagram Alice->>John: Hello John, how are you? John-->>Alice: Great! Alice-)John: See you later!
sequenceDiagram Alice->>John: Hello John, how are you? John-->>Alice: Great! Alice-)John: See you later!

Error handling

Note: Doctave doesn't verify that your Mermaid JS syntax is correct!

Currently Doctave can't verify if you have a syntax error in your Mermaid JS diagram. This means even if you have a mistake in your Mermaid syntax, Doctave can't detect these issues and your builds will succeed.

However, if you have a mistake in your Mermaid diagram while editing with Doctave Studio, an error will be shown:

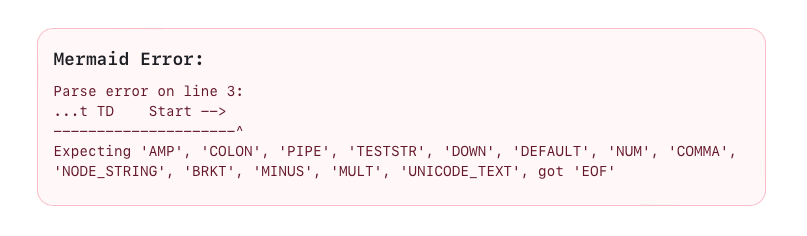

A Mermaid JS error rendered inside Doctave Studio

In production, the error won't be shown, and the diagram will be skipped if an error is found while rendering.
